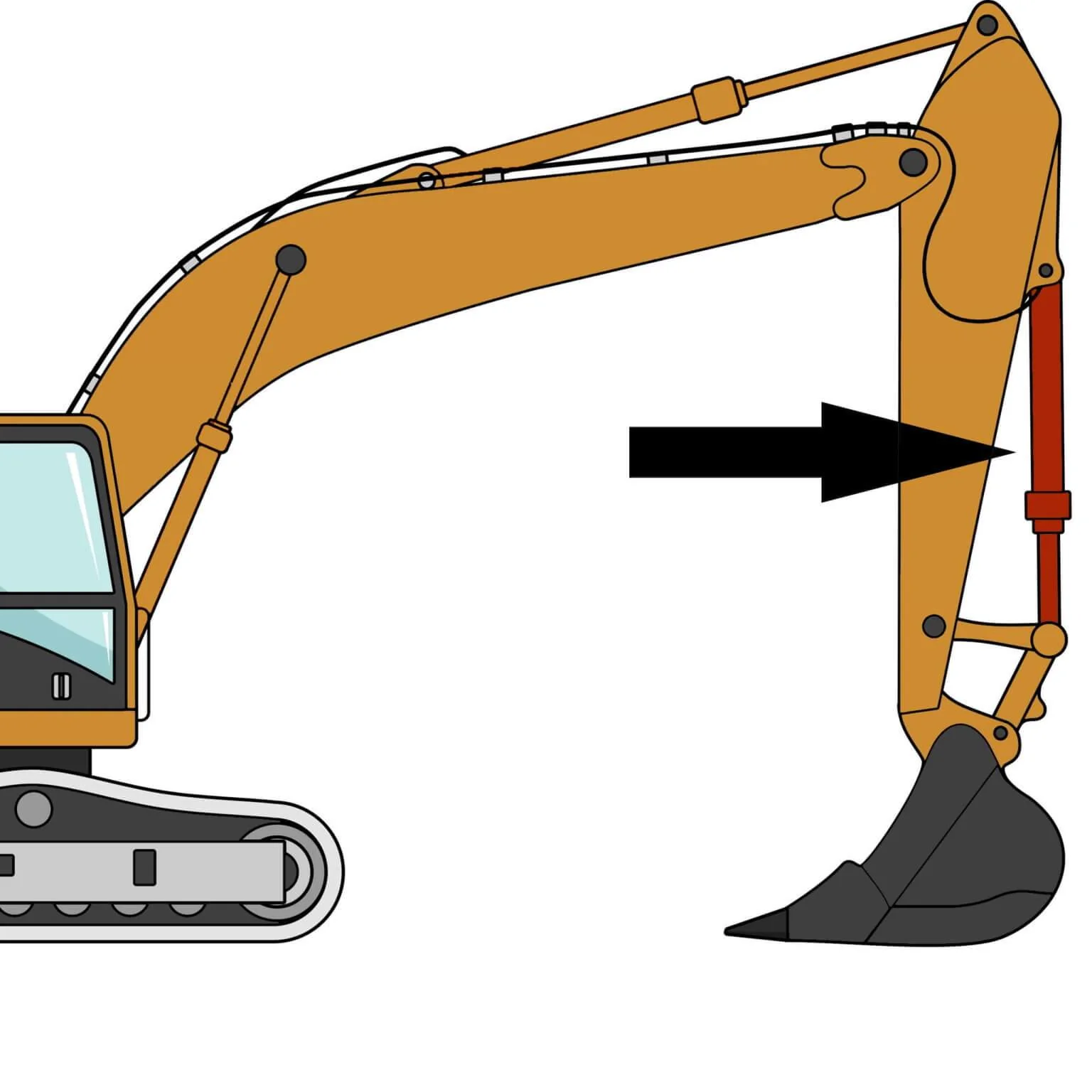

Cat 324D, 324D L, 324D LN Excavator Bucket Cylinder Seal Kit

Cylinder Rebuild/Repair Seal Kit for Caterpillar Model 324D, 324D L, 324D LN Excavators

Please Choose the Option that matches your Machine

• 65mm x 100mm Seal Kit
  • Serial Numbers: DFP00001 - Up; JJG00001 - Up;
  • Cylinder #s: 2487855, 2836118
  • Rod: 65 mm
  • Bore: 100 mm
• 70mm x 100mm Seal Kit
  • Serial Numbers: CJX00001 - Up; DFP00001 - Up; GPK00001 - Up; JAT00001 - Up; MND00001 - Up; PYT00001 - Up;
  • Cylinder #s: 2897699, 2898086, 3582108
  • Rod: 70 mm
  • Bore: 100 mm
• 85mm x 120mm Type 1 Seal Kit
  • Serial Numbers: CJX00001 - Up; DFP00001 - Up; GPK00001 - Up; JAT00001 - Up; JZR00001 - Up; MND00001 - Up; PYT00001 - Up; TSN00001 - Up
  • Cylinder #s: 2426756, 2426759, 3412814, 3494134
  • Rod: 85 mm
  • Bore: 120 mm
  • 4 Piston Wear Rings
• 85mm x 120mm Type 2 Seal Kit
  • Serial Numbers: JJG00001 - Up; PYT00001 - Up;
  • Cylinder #s: 2426767, 2897948
  • Rod: 85 mm
  • Bore: 120 mm
  • 3 Piston Wear Rings
• 90mm x 130mm Type 1 Seal Kit
  • Serial Numbers: BTK00001 - Up; EJC00001 - Up; JJG00001 - Up; LAB00001 - Up; PYT00001 - Up; SYM00001 - Up; T2D00001 - Up; TRH00001 - Up;
  • Cylinder #s: 2426855, 2897975
  • Rod: 90 mm
  • Bore: 130 mm
  • 3 Piston Wear Rings
• 90mm x 130mm Type 2 Seal Kit
  • Serial Numbers: CJX00001 - Up; DFP00001 - Up; GPK00001 - Up; JAT00001 - Up; JZR00001 - Up; MND00001 - Up; PYT00001 - Up; TSN00001 - Up;
  • Cylinder #s: 2426864, 2426871, 2667985, 3408949, 3494143
  • Rod: 90 mm
  • Bore: 130 mm
  • 4 Piston Wear Rings
• 105mm x 150mm Seal Kit
  • Serial Numbers: BTK00001 - Up; CJX00001 - Up; DFP00001 - Up; EJC00001 - Up; GPK00001 - Up; JAT00001 - Up; JJG00001 - Up; JZR00001 - Up; LAB00001 - Up; MND00001 - Up; PYT00001 - Up; SYM00001 - Up; T2D00001 - Up; TSN00001 - Up; TRH00001 - Up
  • Cylinder #s: 2254581, 2898012, 3154449, 3154442, 3154451, 3579766
  • Rod: 105 mm
  • Bore: 150 mm
• 110mm x 160mm Seal Kit
  • Serial Numbers: TSN00001 - Up;
  • Cylinder #s: 3154463
  • Rod: 110 mm
  • Bore: 160 mm
