Caterpillar 322C, 322C L & 322C LN Excavator Bucket Cylinder Seal Kit

Caterpillar 322C, 322C L & 322C LN Excavator Bucket Cylinder Seal Kit

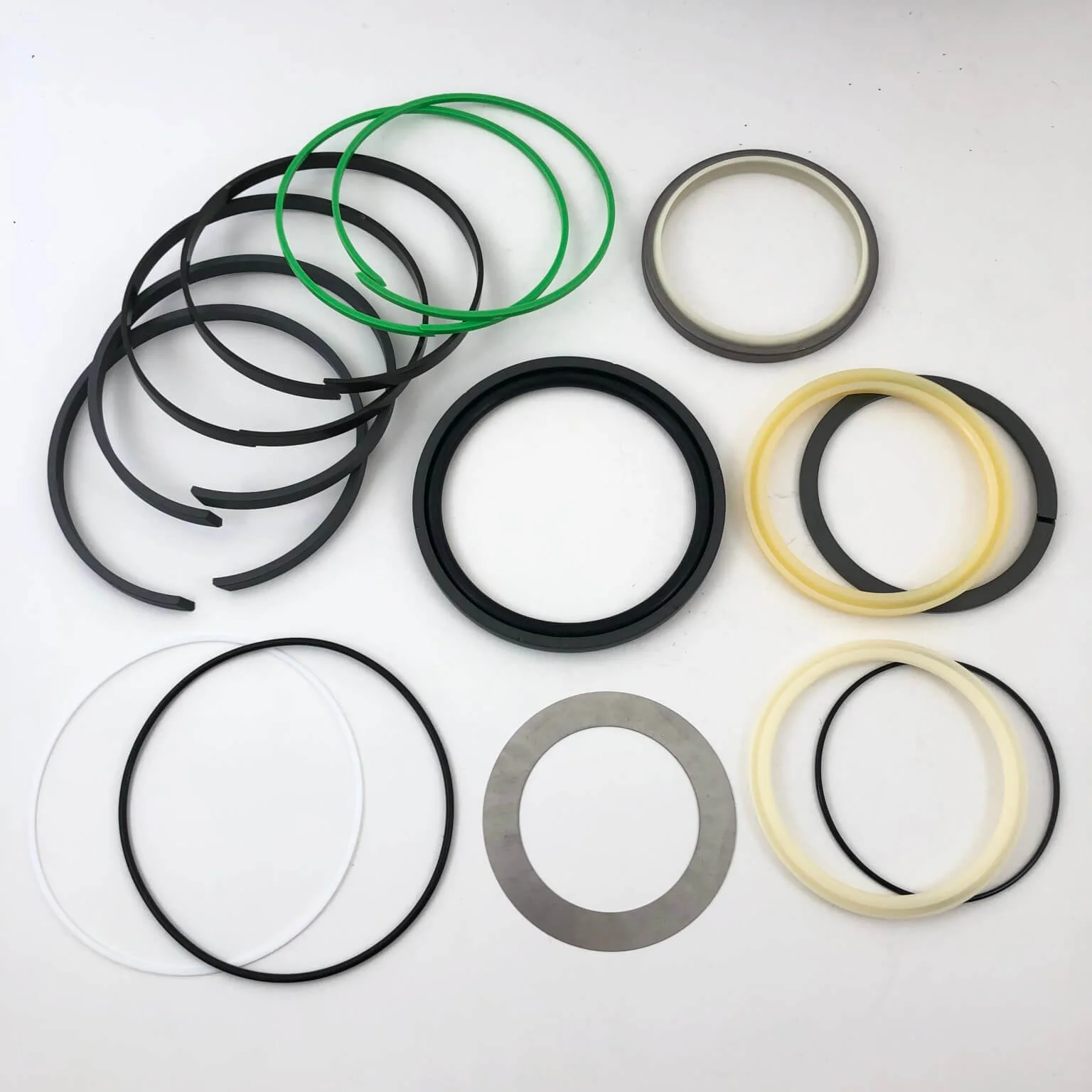

    Cylinder Rebuild/Repair Seal Kit for Caterpillar 322C, 322C L & 322C LN Excavators

    Please Choose the Option that matches your Machine

  • 65mm x 100mm Type 1 Seal Kit
    • Serial Numbers: BKJ00001 - Up; BKM00001 - Up; BLP00001 - Up;
    • Cylinder #s: 1346987
    • Rod: 65 mm
    • Bore: 100 mm
    • 2 Piston Wear Rings
  • 65mm x 100mm Type 2 Seal Kit
    • Serial Numbers: FED00001 - Up; HEK00001 - Up;
    • Cylinder #s: 1709808, 2487855, 2836118
    • Rod: 65 mm
    • Bore: 100 mm
    • 3 Piston Wear Rings
  • 85mm x 120mm & 8 Bolt Head Seal Kit
    • Serial Numbers: BKJ00001 - Up; HEK00001 - Up;
    • Cylinder #s: 1589061
    • Rod: 85 mm
    • Bore: 120 mm
  • 85mm x 120mm & 12 Bolt Head Seal Kit
    • Serial Numbers: BKM00001 - Up; BLP00001 - Up; DAA00001 - Up; FED00001 - Up;
    • Cylinder #s: 1850346, 2043617, 2043689, 2043696, 2590705
    • Rod: 85 mm
    • Bore: 120 mm
  • 90mm x 130mm & 8 Bolt Head Seal Kit
    • Serial Numbers: BFK00001 - Up; BGR00001 - Up; BKJ00001 - Up; BKM00001 - Up; BLP00001 - Up; DAA00001 - Up; FED00001 - Up; HEK00001 - Up; EMR00001 - Up; MAR00001 - Up;
    • Cylinder #s: 1772446, 2044914, 2742532, 2897887, 2897894
    • Rod: 90 mm
    • Bore: 130 mm
  • 90mm x 130mm & 12 Bolt Head Seal Kit
    • Serial Numbers: BKM00001 - Up; BLP00001 - Up; DAA00001 - Up; FED00001 - Up;
    • Cylinder #s: 1772453, 1915584, 2043621, 2590718
    • Rod: 90 mm
    • Bore: 130 mm
  • 105mm x 150mm Seal Kit
    • Serial Numbers: BFK00001 - Up; BGR00001 - Up; BKJ00001 - Up; BKM00001 - Up; BLP00001 - Up; DAA00001 - Up; FED00001 - Up; HEK00001 - Up; EMR00001 - Up; MAR00001 - Up;
    • Cylinder #s: 1772465, 2478853, 2590746
    • Rod: 105 mm
    • Bore: 150 mm
Select Options
From $46.01

Original: $131.46

-65%
Caterpillar 322C, 322C L & 322C LN Excavator Bucket Cylinder Seal Kit—

$131.46

$46.01
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8

Description

    Cylinder Rebuild/Repair Seal Kit for Caterpillar 322C, 322C L & 322C LN Excavators

    Please Choose the Option that matches your Machine

  • 65mm x 100mm Type 1 Seal Kit
    • Serial Numbers: BKJ00001 - Up; BKM00001 - Up; BLP00001 - Up;
    • Cylinder #s: 1346987
    • Rod: 65 mm
    • Bore: 100 mm
    • 2 Piston Wear Rings
  • 65mm x 100mm Type 2 Seal Kit
    • Serial Numbers: FED00001 - Up; HEK00001 - Up;
    • Cylinder #s: 1709808, 2487855, 2836118
    • Rod: 65 mm
    • Bore: 100 mm
    • 3 Piston Wear Rings
  • 85mm x 120mm & 8 Bolt Head Seal Kit
    • Serial Numbers: BKJ00001 - Up; HEK00001 - Up;
    • Cylinder #s: 1589061
    • Rod: 85 mm
    • Bore: 120 mm
  • 85mm x 120mm & 12 Bolt Head Seal Kit
    • Serial Numbers: BKM00001 - Up; BLP00001 - Up; DAA00001 - Up; FED00001 - Up;
    • Cylinder #s: 1850346, 2043617, 2043689, 2043696, 2590705
    • Rod: 85 mm
    • Bore: 120 mm
  • 90mm x 130mm & 8 Bolt Head Seal Kit
    • Serial Numbers: BFK00001 - Up; BGR00001 - Up; BKJ00001 - Up; BKM00001 - Up; BLP00001 - Up; DAA00001 - Up; FED00001 - Up; HEK00001 - Up; EMR00001 - Up; MAR00001 - Up;
    • Cylinder #s: 1772446, 2044914, 2742532, 2897887, 2897894
    • Rod: 90 mm
    • Bore: 130 mm
  • 90mm x 130mm & 12 Bolt Head Seal Kit
    • Serial Numbers: BKM00001 - Up; BLP00001 - Up; DAA00001 - Up; FED00001 - Up;
    • Cylinder #s: 1772453, 1915584, 2043621, 2590718
    • Rod: 90 mm
    • Bore: 130 mm
  • 105mm x 150mm Seal Kit
    • Serial Numbers: BFK00001 - Up; BGR00001 - Up; BKJ00001 - Up; BKM00001 - Up; BLP00001 - Up; DAA00001 - Up; FED00001 - Up; HEK00001 - Up; EMR00001 - Up; MAR00001 - Up;
    • Cylinder #s: 1772465, 2478853, 2590746
    • Rod: 105 mm
    • Bore: 150 mm
