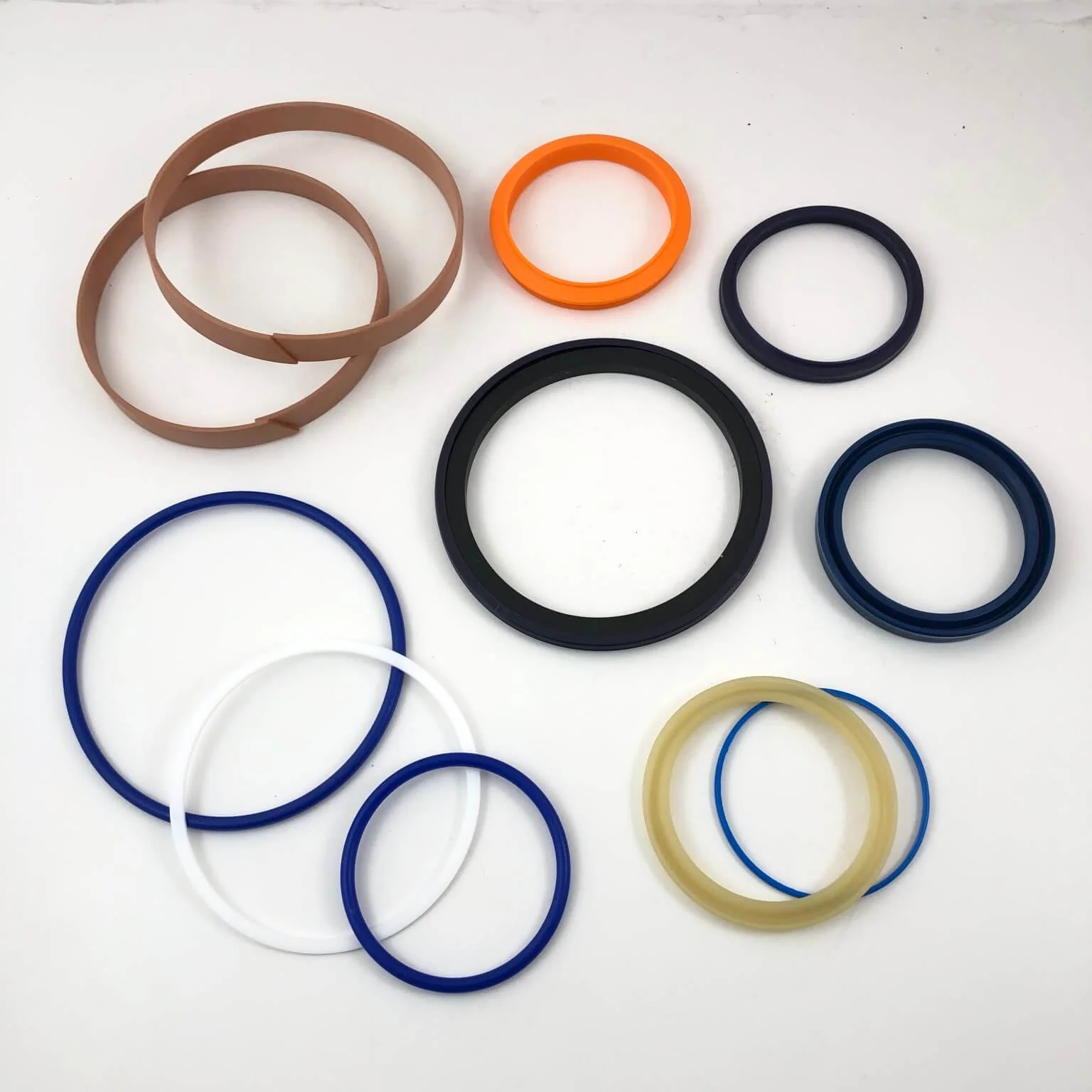

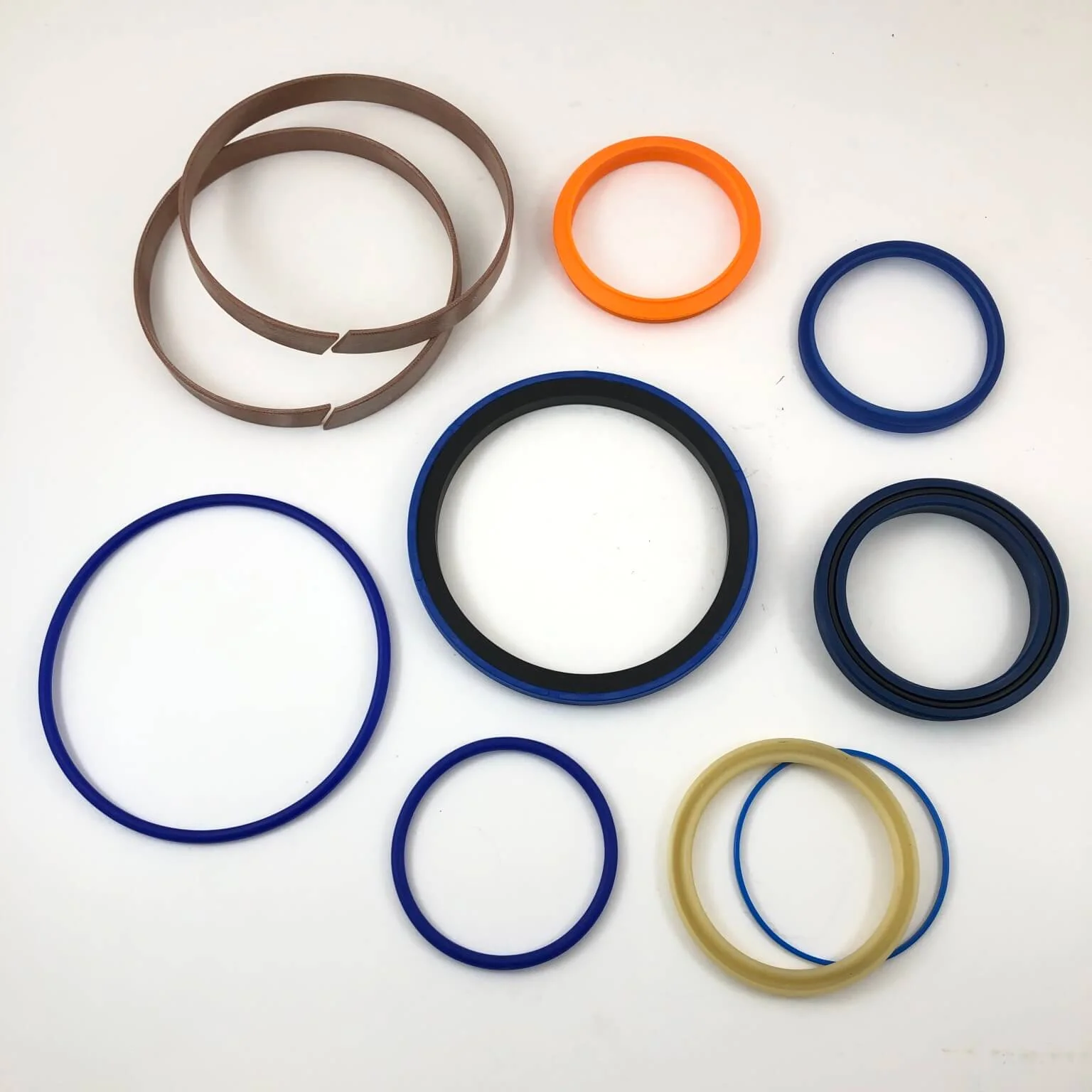

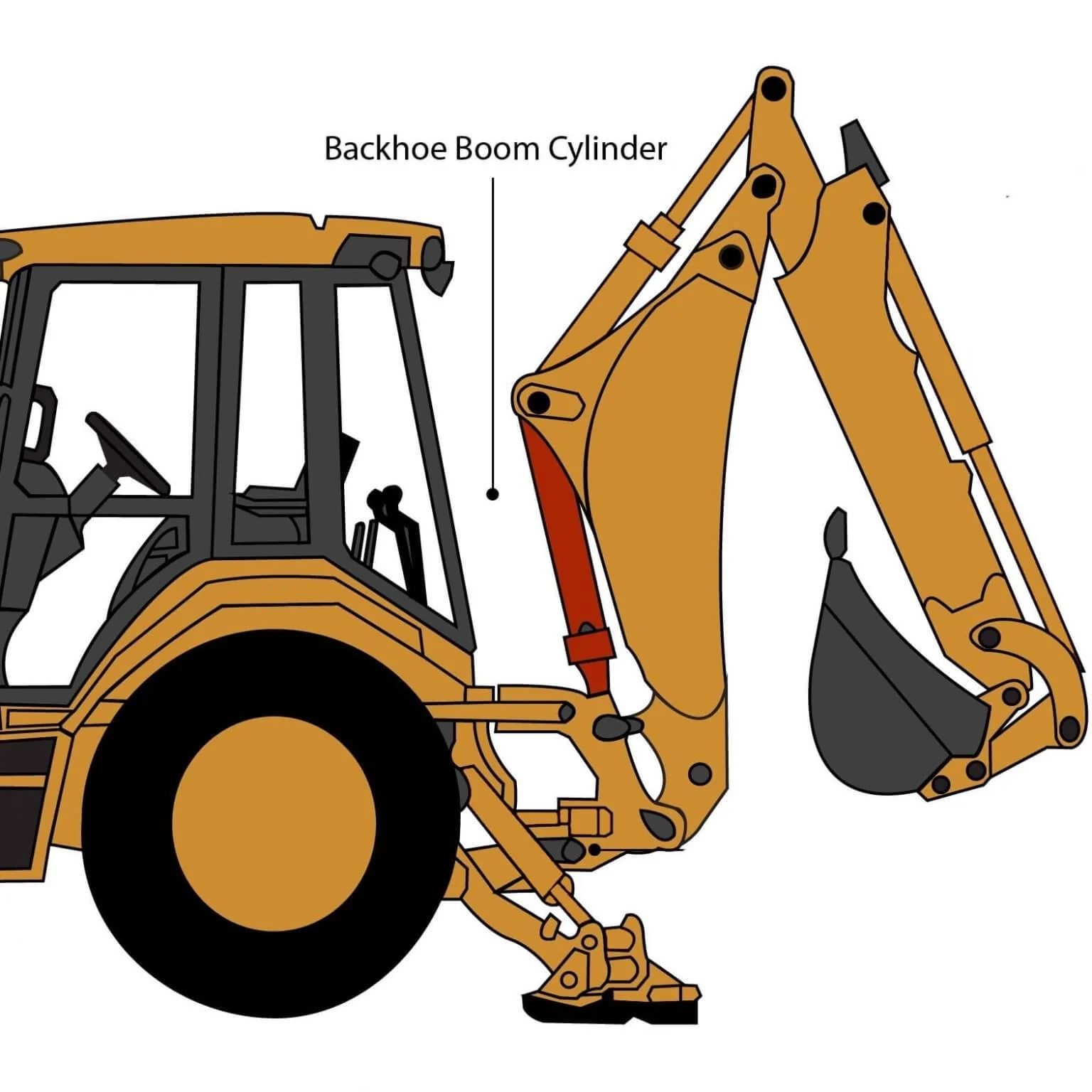

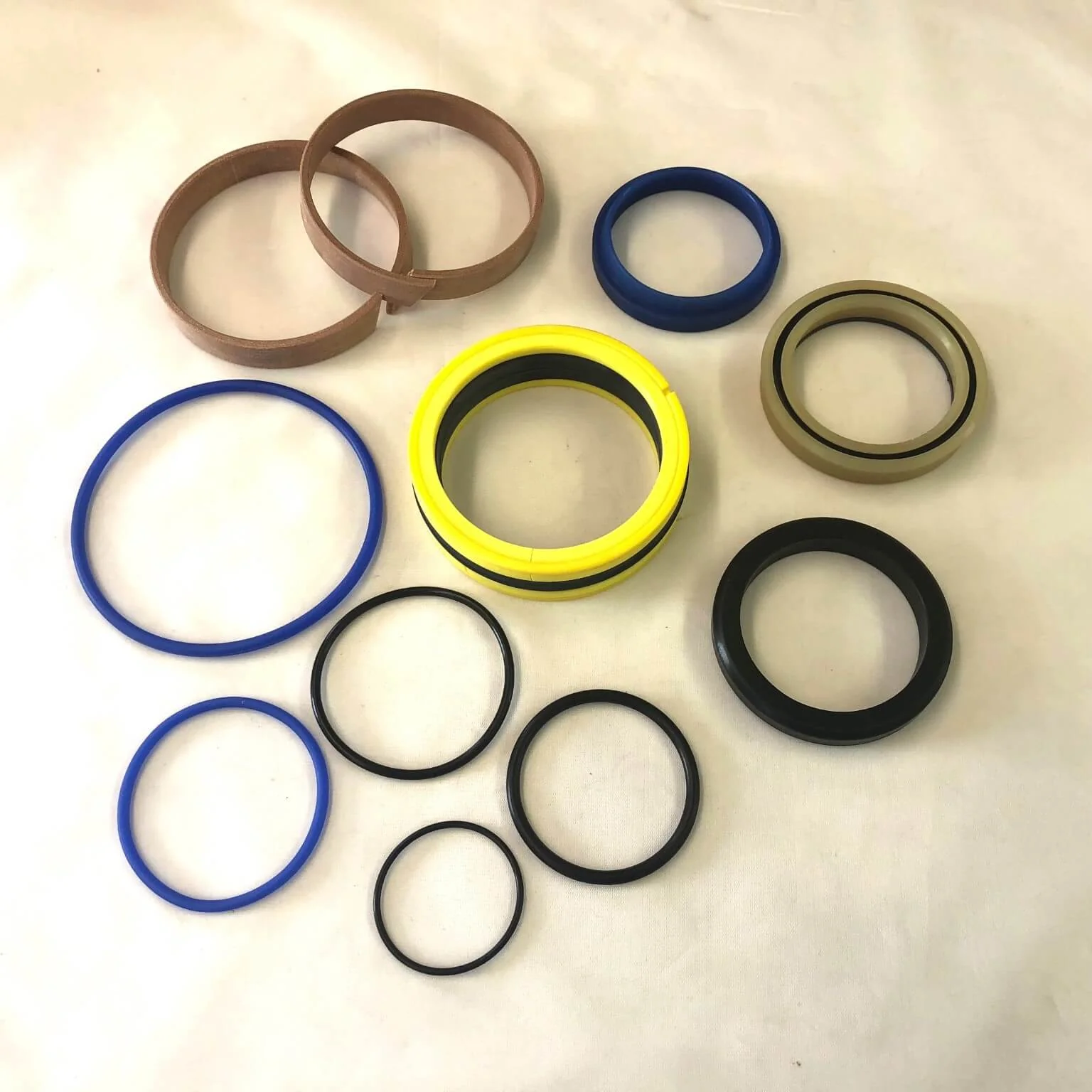

JCB 3CX Backhoe Boom Cylinder Seal Kit

Cylinder Rebuild/Repair Seal Kit for JCB Model 3CX Backhoe

Fits all 3CX Models (3CX E, 3CX SM, 3CX SM4T, 3CX SM PLUS, 3CX SM SUPER, 3CX SM TURBO, 3CX4, 3CX4T, 3CX 14L5NM, 3CX 14L5WM)

Please Choose the Option that Matches your Machine

• 60mm x 100mm
  • Serial Numbers: 0290001 - 0305999
  • Cylinder #s: 561-09800
  • Standard Lift Backhoe
  • Rod: 60 mm
  • Bore: 100 mm
• 60mm x 110mm & Serial Numbers: Up to 0305999
  • Serial Numbers: 0290001 - 0305999
  • Cylinder #s: 561-08300
  • Heavy Lift Backhoe
  • Rod: 60 mm
  • Bore: 110 mm
• 60mm x 110mm & Serial Numbers: 0400000 - Up
  • Serial Numbers: 0400000 - 2873745
  • Cylinder #s: 561-60028, 561-60062, 561-60063, 561-60089, 561-60274, 561-60280, 561-39100
  • Standard Lift Backhoe
  • Rod: 60 mm
  • Bore: 110 mm
• 65mm x 120mm
  • Serial Numbers: 0430000 - 2873745
  • Cylinder #s: 563-60022, 563-60028, 563-60029, 563-60101, 563-60103, 128-C1346, 128-H4303
  • Heavy Lift Backhoe
  • Rod: 65 mm
  • Bore: 120 mm
• 70mm x 130mm
  • Serial Numbers: 2000000 - 2873745
  • Cylinder #s: 565-60132
  • Rod: 70 mm
  • Bore: 130 mm
• 75mm x 140mm
  • Serial Numbers: 2000000 - 2873745
  • Cylinder #s: 566-60055
  • Rod: 75 mm
  • Bore: 140 mm
