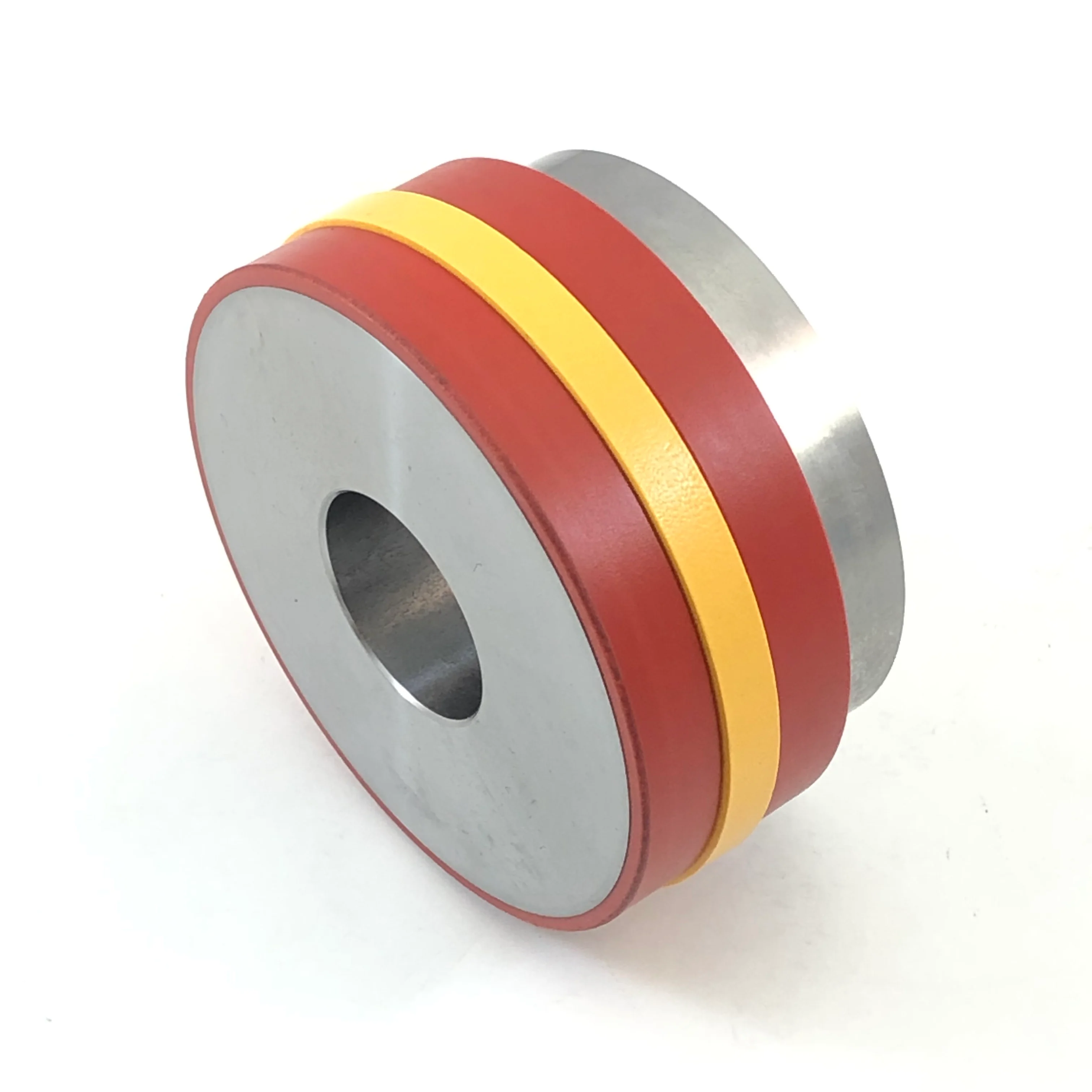

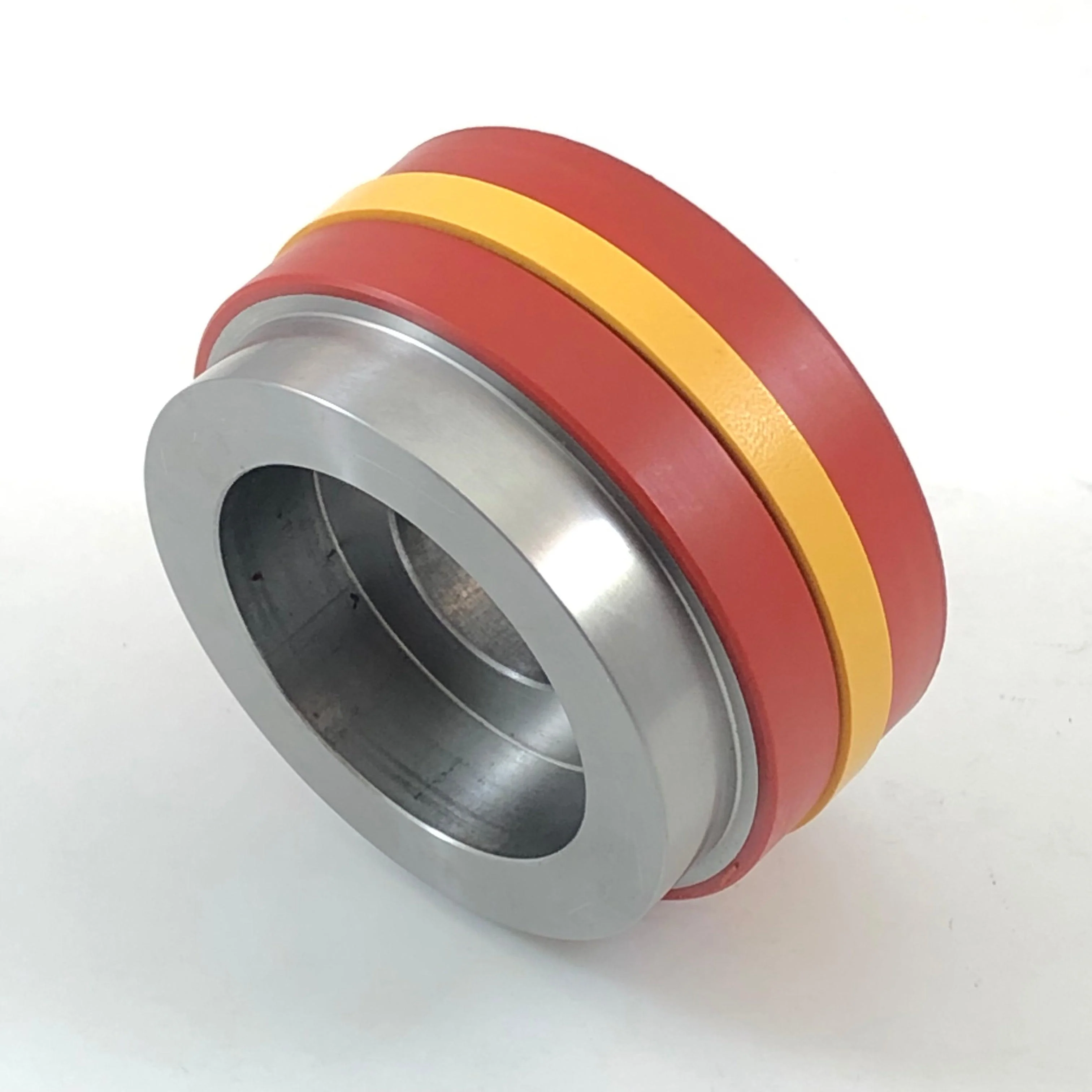

John Deere 310E Loader Lift Cylinder Unitized Piston

John Deere 310E Loader Lift Cylinder Unitized Piston

  • AH165826
  • Replacement Cylinder Piston for John Deere 310E Backhoe Loader
  • All Serial Numbers
  • Cylinder #: AH211206, AH207401
  • For use on cylinders with Unitized Pistons (Wear Bands formed to Piston)
  • Includes the Piston Seal Installed
  • Width: 40.74 mm
  • Hole Diameter: 27.58 mm
  • Counterbore: 50 mm Diameter x 15 mm Deep
  • Bore: 80 mm
$152.57
John Deere 310E Loader Lift Cylinder Unitized Piston—
$152.57
Product image 1
Product image 2
Product image 3

Description

  • AH165826
  • Replacement Cylinder Piston for John Deere 310E Backhoe Loader
  • All Serial Numbers
  • Cylinder #: AH211206, AH207401
  • For use on cylinders with Unitized Pistons (Wear Bands formed to Piston)
  • Includes the Piston Seal Installed
  • Width: 40.74 mm
  • Hole Diameter: 27.58 mm
  • Counterbore: 50 mm Diameter x 15 mm Deep
  • Bore: 80 mm
