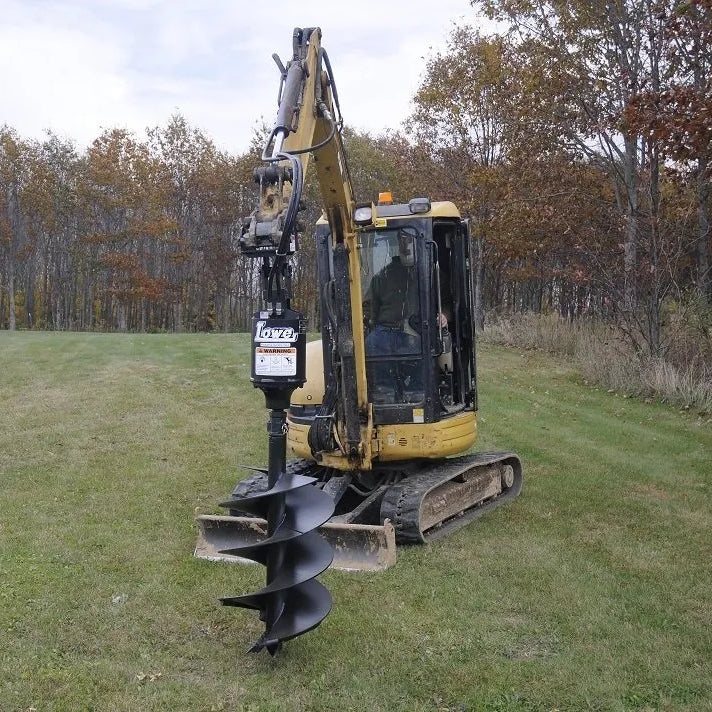

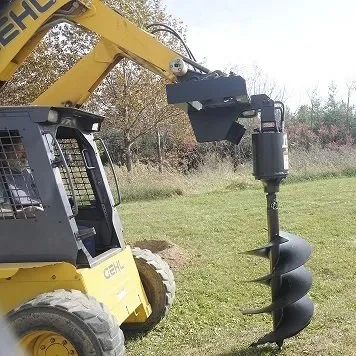

Lowe A-400 Series High Flow Planetary Auger Drive

• Made In USA
• Approximately 20% increase in strength over previous Lowe Models and far stronger than the competition.
• Zero Leak Motor Mount
• New Design attachment fastening system with superior strength and durability.
• Through hardened alloy drive shaft with unbreakable performance
• BP Gearbox comes with a 5 year Repair or Replace Warranty.
• Protected hose routing minimizes component damage
• Hub is 2-1/2" Hex
• High hydraulic pressure from 2,000-4,200 PSI. This allows you to get more torque from the auger when operating on a machine with higher hydraulic pressure
• Does Not Include any Auger Bits
• Includes Hoses with Flat Face Couplers & Mounting Plate
• Comes Standard with a Universal Skid Steer Mounting Plate. Please Verify that your machine Mount is universal (same as SAE J2513 & Bobtach)
• If you need a different Mount Please Call us at 979-402-0188

Model	Suggested Machine Flow (GPM)	Recommended Max Auger Dia.	Weight (lbs.)
A-400	22 - 42	48"	535



Performance Chart (Speed in RPM for a given Flow Rate in GPM)

Flow	A-400
22	42
24	45
26	49
28	53
30	57
32	60
34	64
36	68
38	71
40	76
42	79



Torque (lb/ft) for given Pressures in PSI (Theoretical/ Near Actual)

Model	2,000	2,500	3,000	3,500	4,000
A-400	2,970/2,673	3,712/3,340	4,454/4,009	5,196/4,676	5,939/5,345
