Lowe Classic Series Auger Drives

Lowe Classic Series Auger Drives

  • Made In USA
  • New durability and performance levels all with the traditional Lowe look.

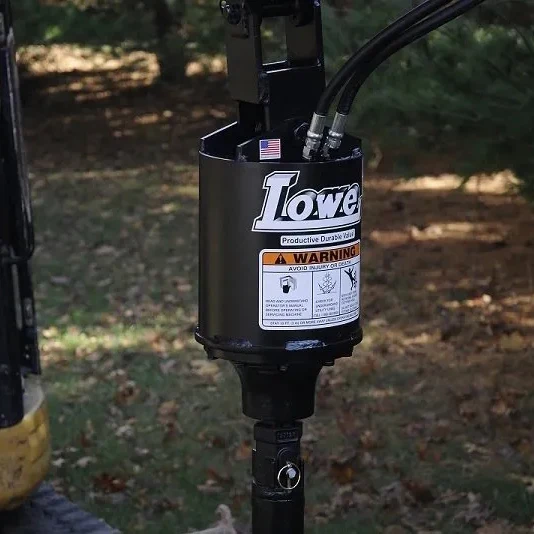

  • Ultra reliable LOWE hydraulic motors, solid unit structures, heat-treated alloy shafts and an even heavier duty reduction drive are standard
  • Balanced alignment means it is easier to drill a vertical hole.
  • Protected hose routing minimizes component damage
  • Hub Options are: 2-9/16" Round & 2" Hex Hub
  • 1650CL & 2175CL are now available in High Pressure versions which increase the operating hydraulic pressure from 2,000-3,000 PSI to 2,000 - 3,500. This allows you to get more torque from the auger when operating on a machine with higher hydraulic pressure
  • Does Not Include any Auger Bits
  • Includes Hoses with Flat Face Couplers & Mounting Plate

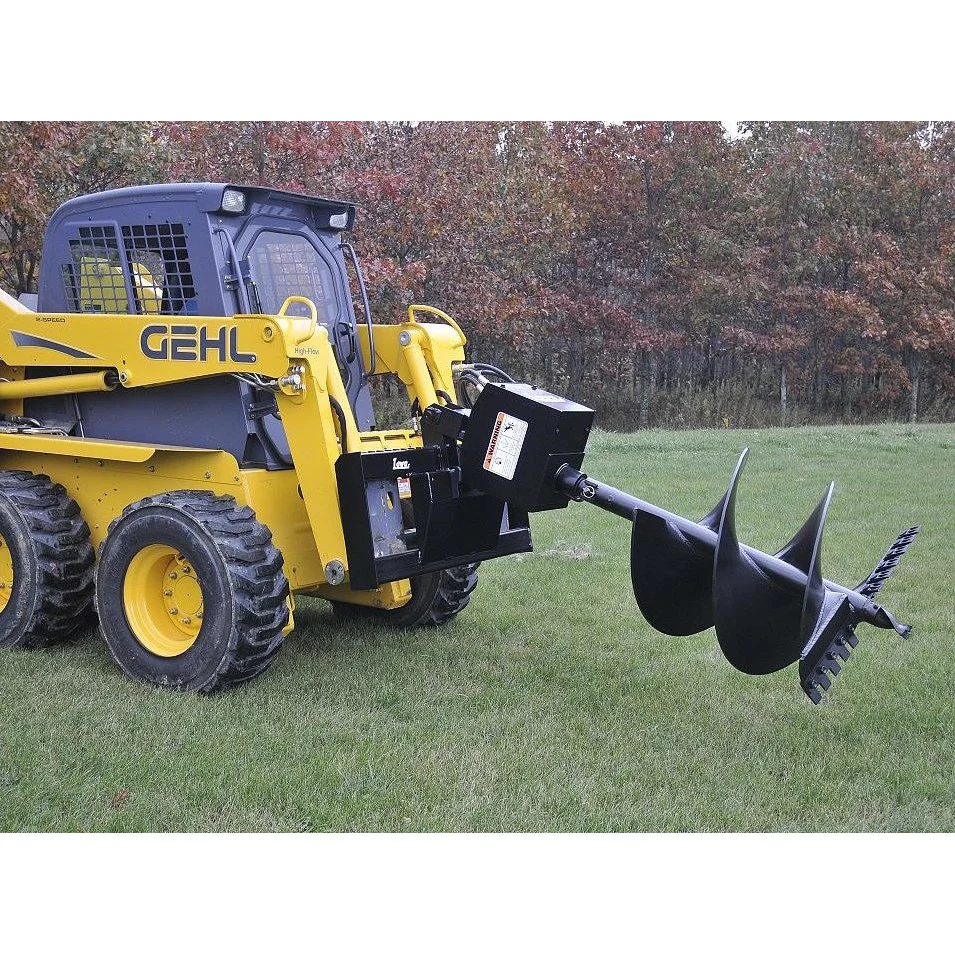

  • Comes Standard with a Universal Skid Steer Mounting Plate. Please Verify that your machine Mount is universal (same as SAE J2513 & Bobtach)
  • If you need a different Mount Please Call us at 979-402-0188
Auger Drive Model Suggested Machine Flow (GPM) Recommended Max Auger Dia. Weight (lbs.)

500 Classic

 5 - 15

15"

 230
750 Classic 7 - 20

24"

 315
1200 Classic 10 - 20

30"

 341
1650 Classic 14 - 25

36"

 343
2175 Classic 16 - 25

36"

 345



Performance Chart (Speed in RPM for a given Flow Rate in GPM)

 Flow  500CL 750CL 1200CL 1650CL 2175CL
6 56
8 75 64
10 94 80 52
12 113 97 63
14 132 113 74 51
16 129 84 58
18
145 95 65 54
20 161 106 73 60
22

80 67
24 88 73



Torque (lb/ft) for given Pressures in PSI (Theoretical/ Near Actual)

 Model 2,000 2,500 3,000 3,500 4,000
500CL 653/588 817/735 980/882
750CL 745/671 932/839 1,118/1,006
1200CL 1,150/1,035 1,437/1,293 1,742/1,152
1650CL 1,652/1,487 2,062/1,856 2,478/2,230
1650HPCL 1,652/1,487 2,062/1,856 2,478/2,230 2,887/2,507 3,300/2,873
2175CL 1,992/1,793 2,490/2,241 2,998/2,696
2175HPCL 1,992/1,793 2,490/2,241 2,998/2,696 3,479/3,031 3,976/3,472
Select Model
Select Top Hub Type
From $817.25

Original: $2,335.00

-65%
Lowe Classic Series Auger Drives—

$2,335.00

$817.25
